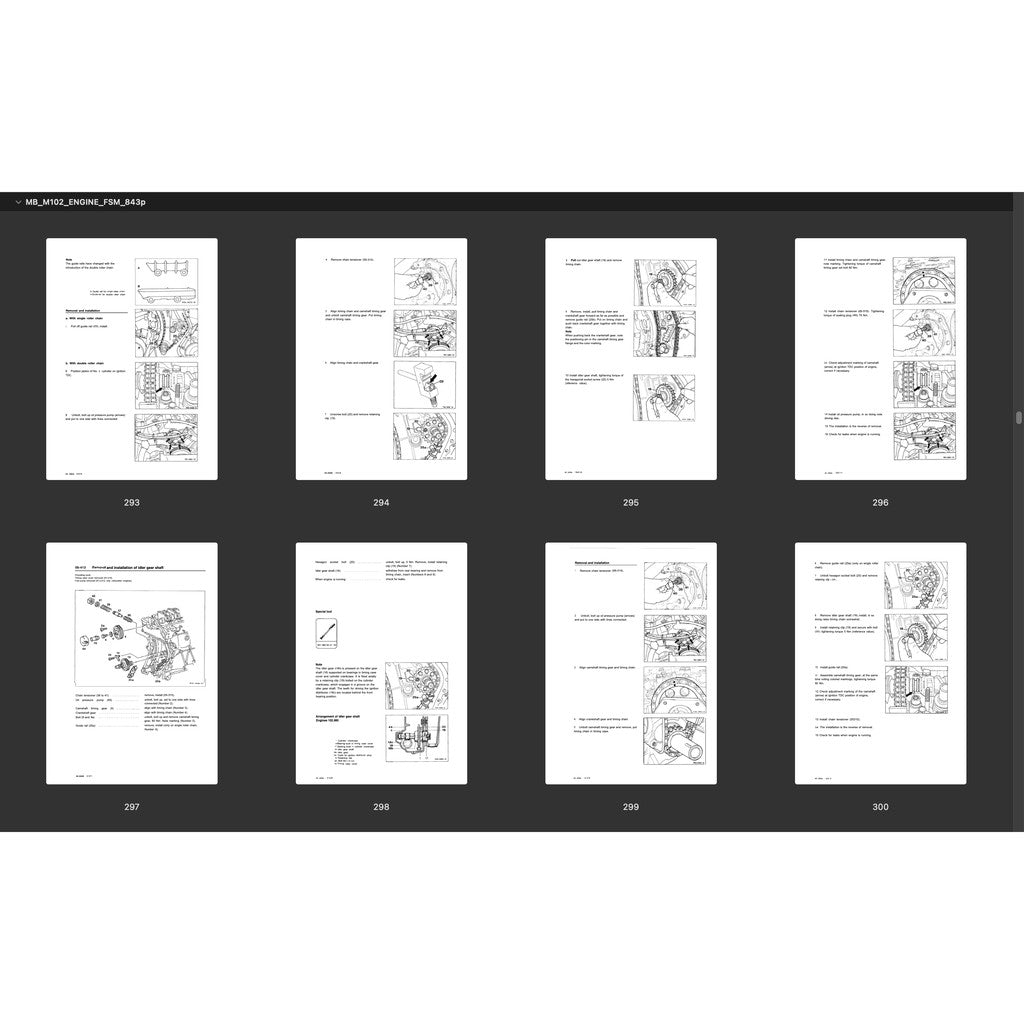

MERCEDES-BENZ M102 1.8–2.5 L 8V-16V (1980–1996) FACTORY ENGINE SERVICE WORKSHOP MANUAL IN PDF FORMAT (921 PAGES) SUPPLIED AS DOWNLOADABLE LINK
DUBBED MERCEDES-BENZ MOST HYBRID ENGINE OF THE 4-CYL RANGE, IT WAS USED ON A NUMBER OF MODELS THROUGHOUT THE 80' AND 90' CHIEFLY ON THE W201. OTHER APPLICATIONS ARE: W123/ W124/ W126. IT BECAME VERY POPULAR BECAUSE OF THE SOMEWHAT SMALL DISPLACEMENT COMPARED TO MB'S STANDARDS ENGINE SIZE AVERAGING 3.0L MAKING IT A RELATIVELY ECONOMICAL, LOW-MAINTENANCE YET POWERFUL ENGINE THAT COULD BE SWAPPED AND FITTED IN OTHER MB MODELS OF THE PERIOD.
THIS MANUAL INCLUDE THE SUPPLEMENT FOR THE M102.983 (16V)

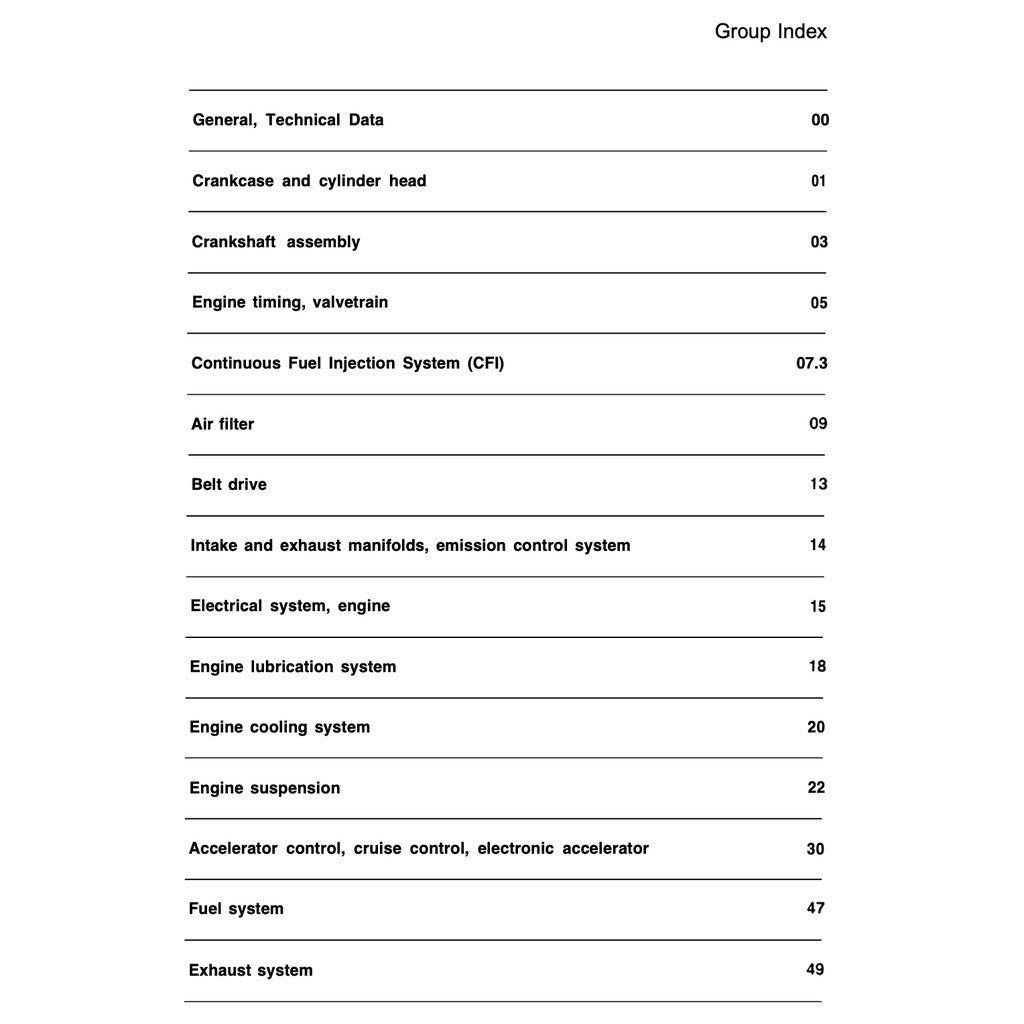

- General, Technical Data

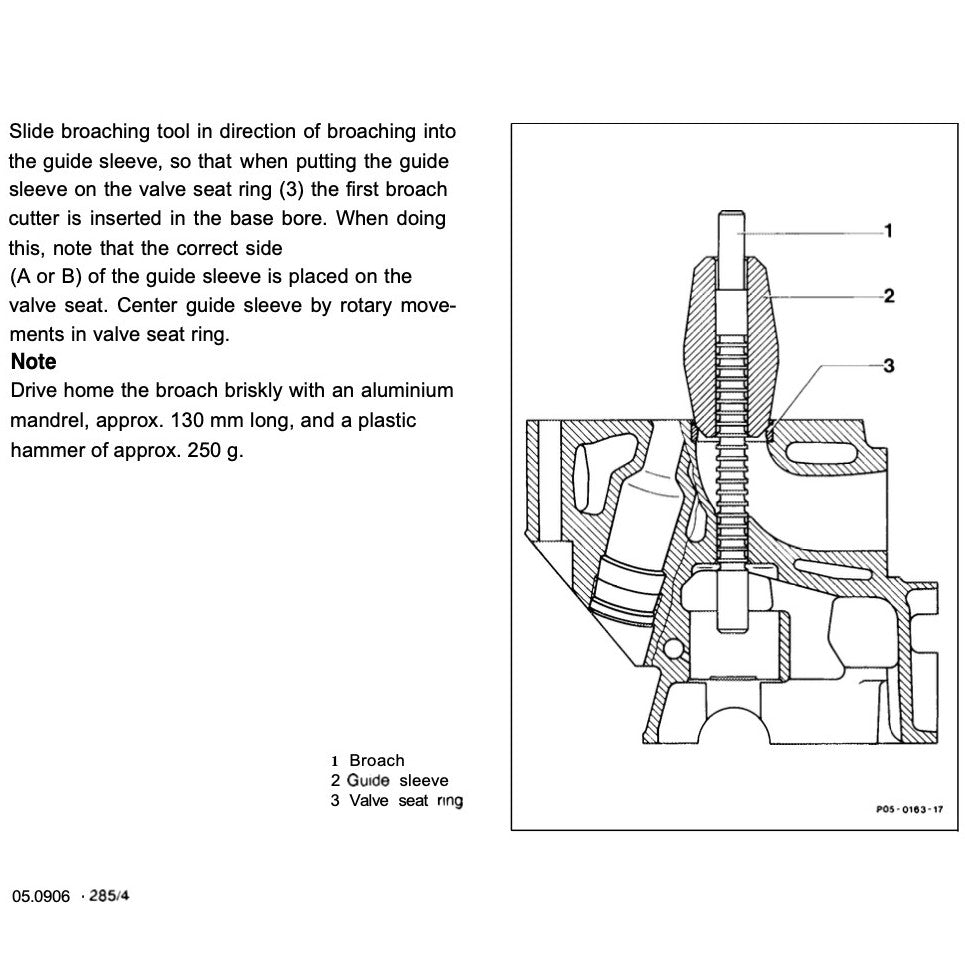

- Crankcase and cylinder head
- Crankshaft assembly
- Engine timing, valvetrain

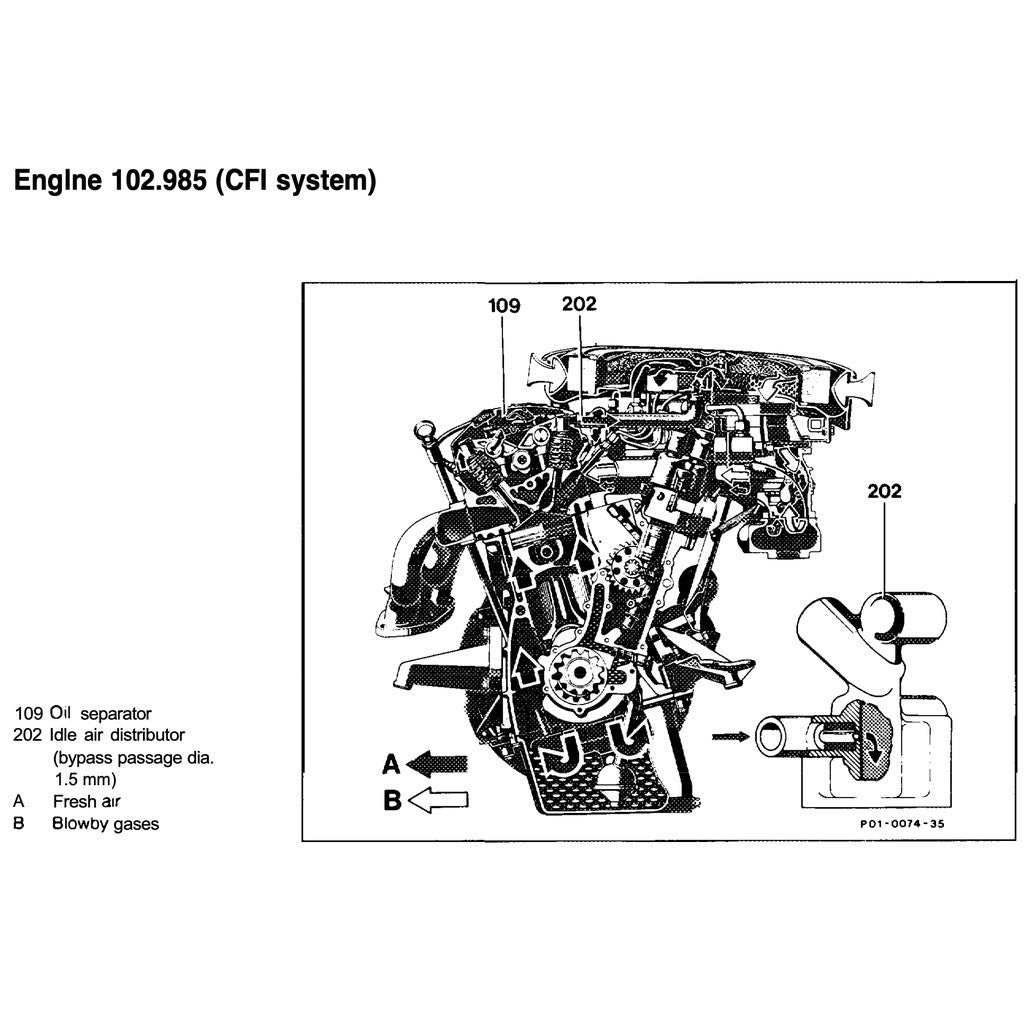

- Continuous Fuel Injection System (CFI)
- Air filter
- Belt drive
- Intake and exhaust manifolds, emission control system

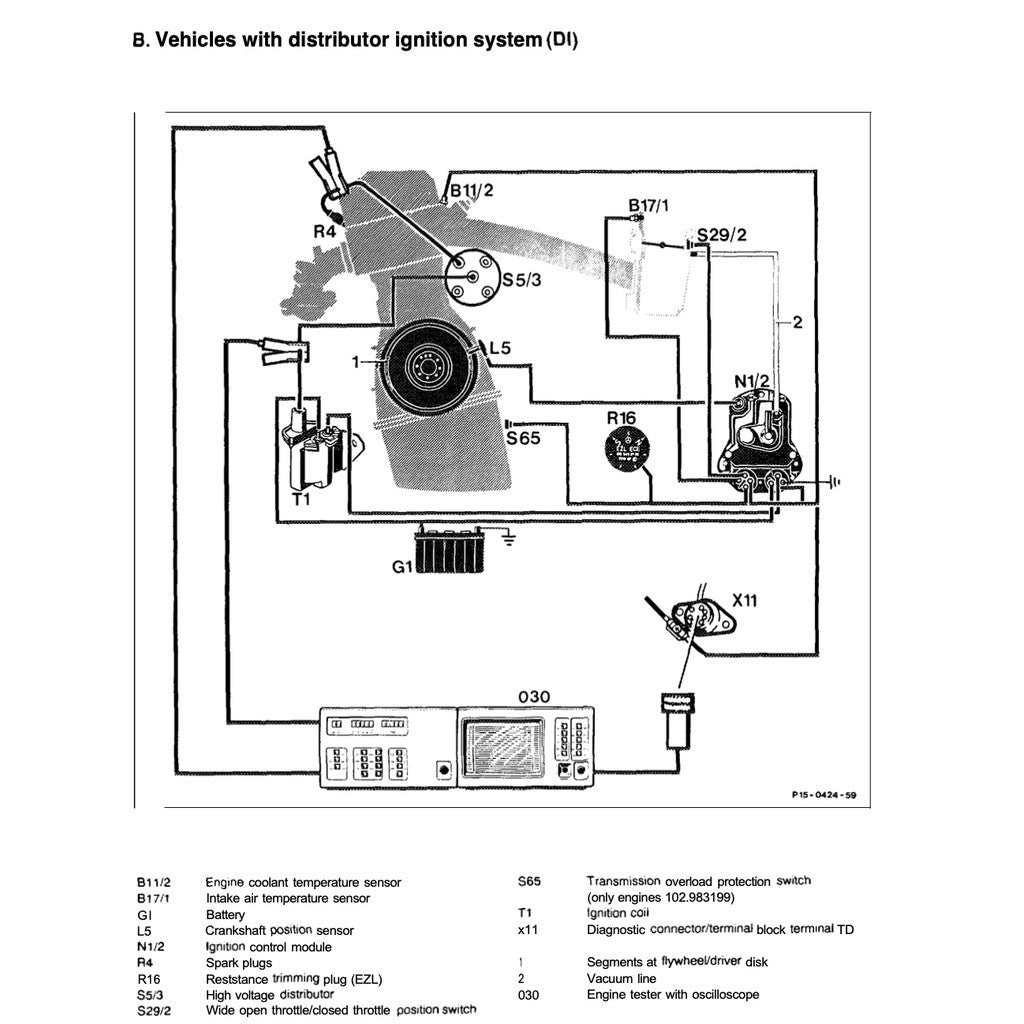

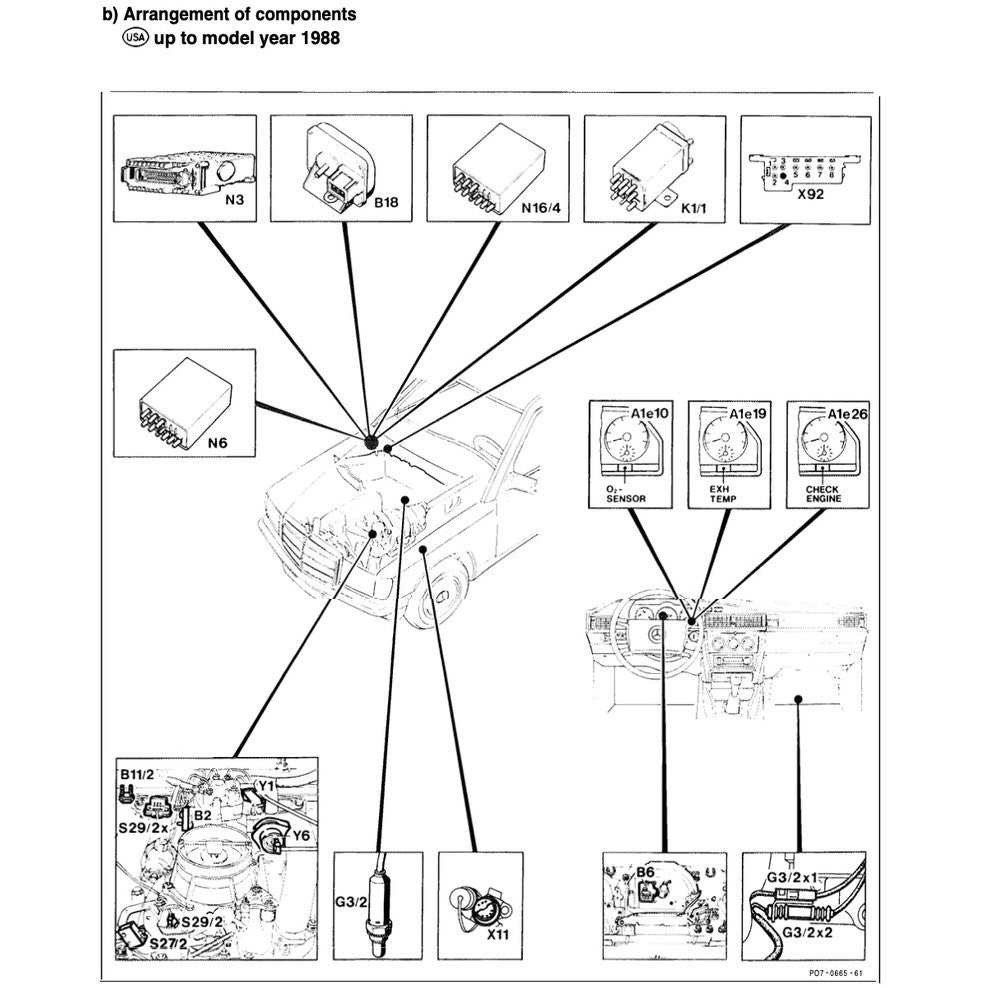

- Electrical system, engine

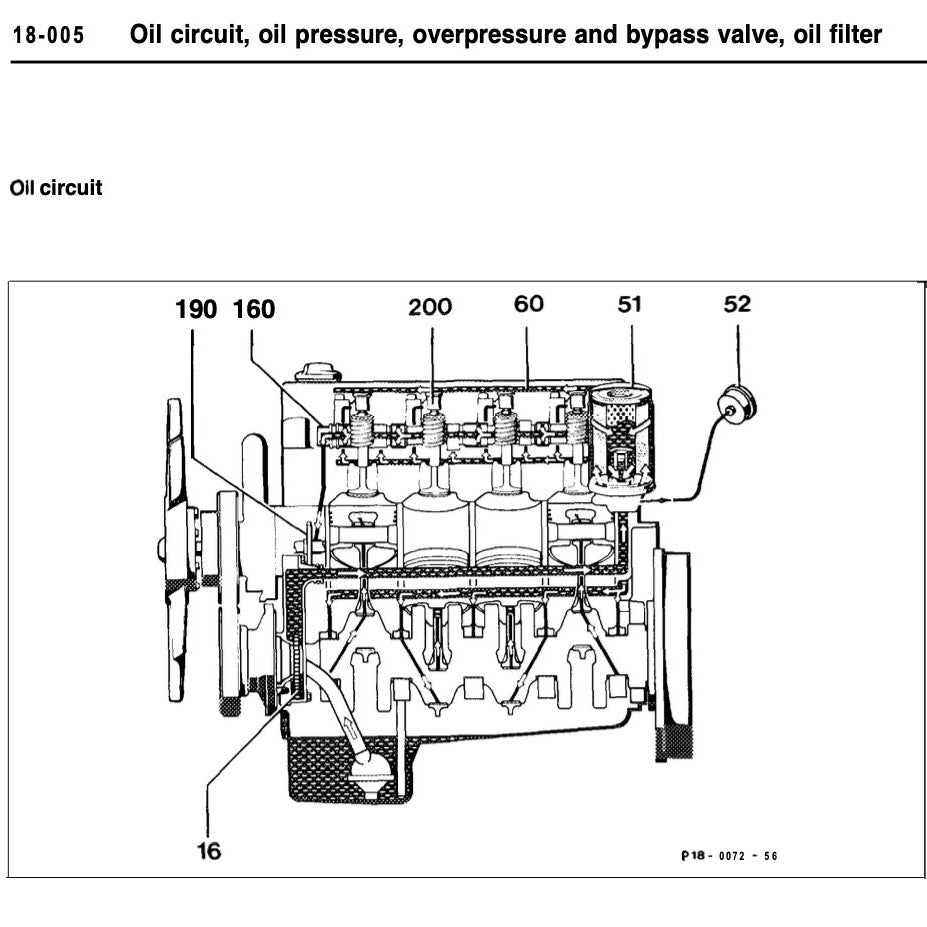

- Engine lubrication system

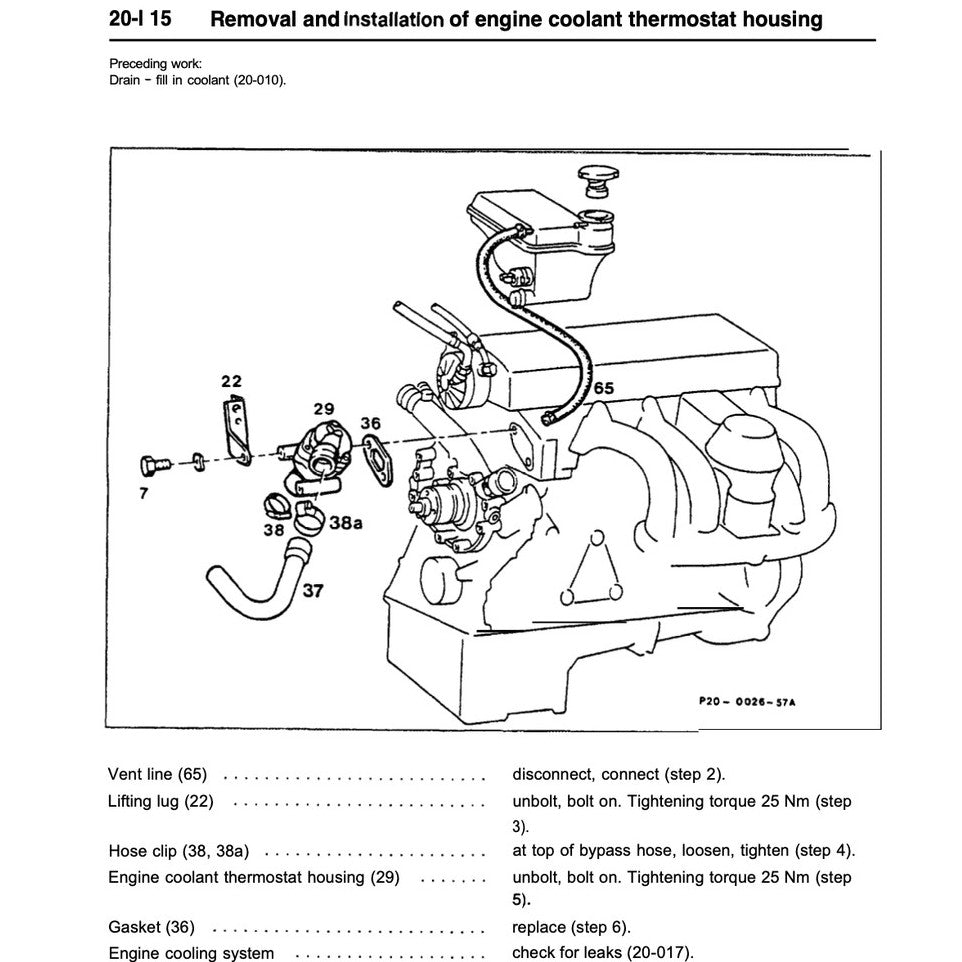

- Engine cooling system
- Engine suspension
- Accelerator control, cruise control, electronic accelerator
- Fuel system
- Exhaust system
